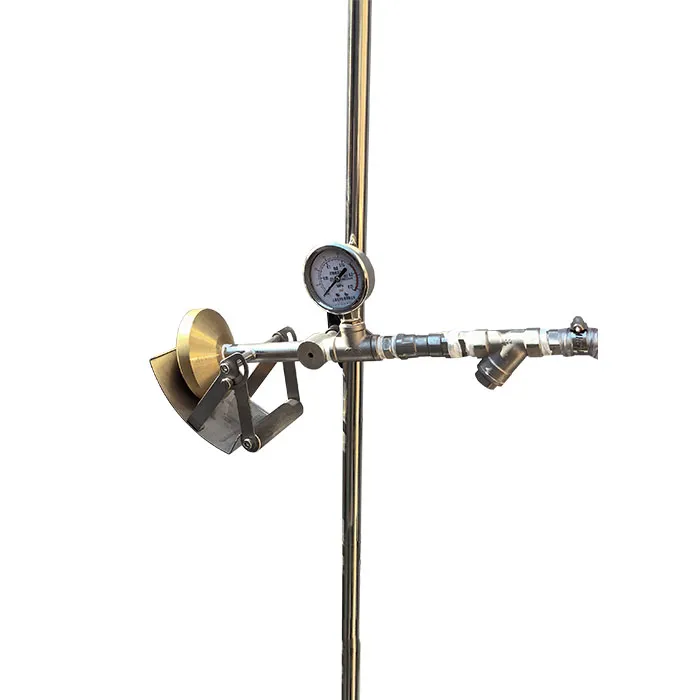

IPX3 IPX4 핸드헬드 워터 스프레이 노즐, IEC 60529 방수 침입 보호 시험 장비, 이동식 실드 및 압력 게이지 포함

IPX3/IPX4 핸드헬드 워터 스프레이 노즐은 제어된 분사 및 살수 시뮬레이션이 필요한 IEC 60529 방수 시험을 위해 설계되었습니다. 전자제품, 자동차 부품, 야외 전기 장비, 가전제품, 조명 제품 및 산업용 인클로저의 내수성을 평가하는 데 널리 사용됩니다. 핸드헬드 디자인으로 실험실 테스트, R&D 검증, 프로토타입 평가 및 현장 점검에서 유연한 작동이 가능합니다.

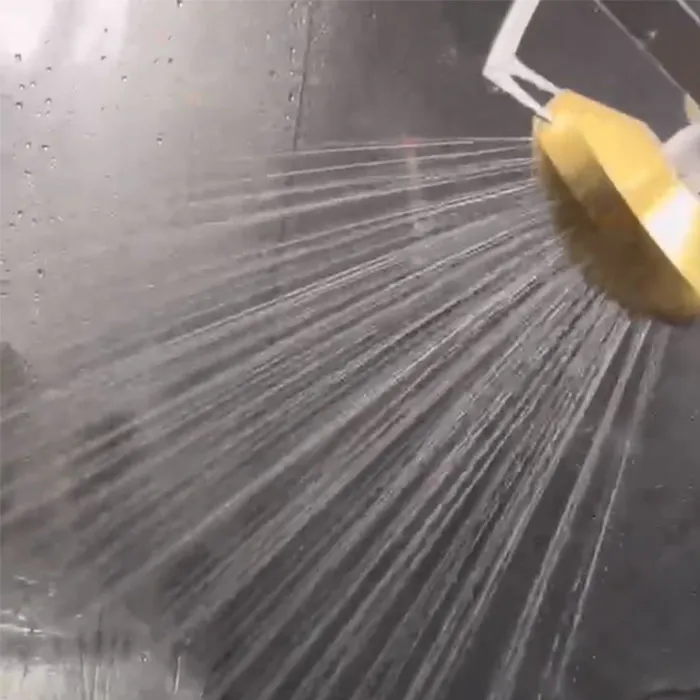

안정적인 분사 패턴과 규격에 맞는 물 분배로 IPX3 빗물 및 IPX4 살수 테스트를 지원합니다. 노즐은 표준 수직형 IPX3/IPX4 방수 시험 챔버 내부에도 설치할 수 있습니다. LIB industry는 정확하고 반복 가능하며 장기적인 테스트 성능을 위해 설계된 신뢰할 수 있는 시험 장비를 제공합니다.


Features & Advantages of IPX3/IPX4 Handheld Water Spray Nozzle

Strict Standard Compliance:

100% compliant with IEC 60529, GB 4208, and EN 60529 standards. Ideal for third-party laboratory certifications.

Dual-Purpose with Movable Shield:

Features a precision-engineered aluminum shield. Keep the shield on for IPX3 (spraying water), or remove it for IPX4 (splashing water).

Premium Material & Precision Machining:

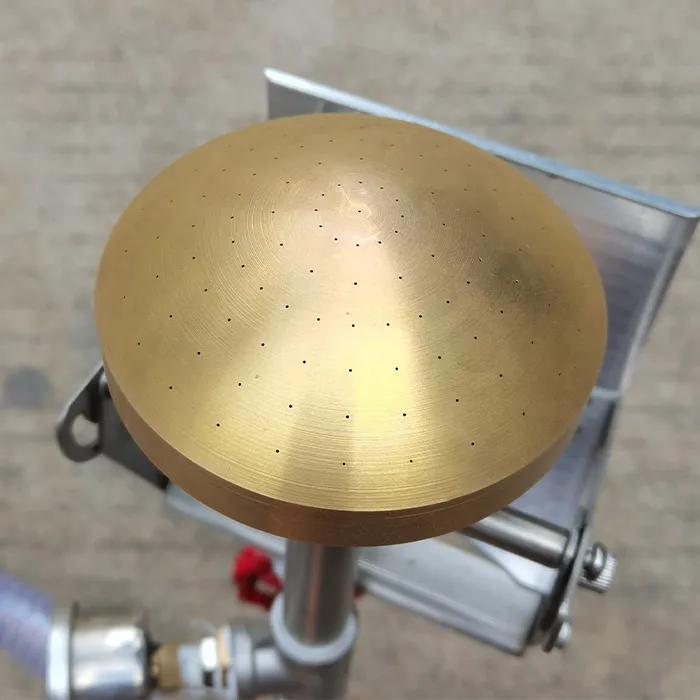

The nozzle head is crafted from high-grade brass with 121 precision-drilled holes (Φ0.5 mm) to ensure uniform water distribution. The handle and connection parts are made of durable stainless steel.

All-in-One Control:

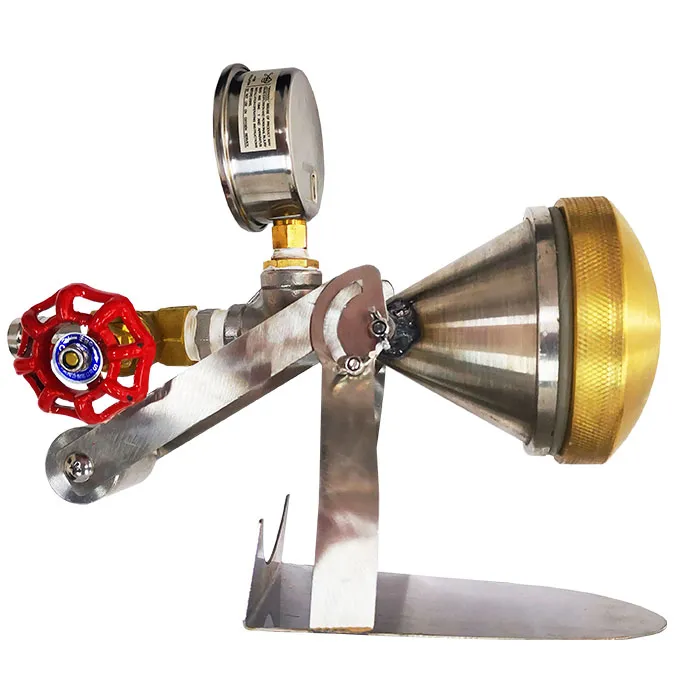

Comes integrated with a high-accuracy pressure gauge (0-250 kPa) and a brass water flow control valve for real-time monitoring and safe operation.

Durable SUS304 Construction:

The nozzle structure is manufactured using corrosion-resistant materials for long-term operation under continuous water exposure conditions.


 Technical Specifications of IPX3/IPX4 Handheld Water Spray Nozzle

Parameter

Specification

Nozzle Hole Diameter

Φ0.5 mm

Number of Holes

121 holes

Water Flow Rate
